LUTE Architecture and Execution Model

The following page attempts to provide an overview of the architecture of LUTE and the various steps and components involved in its execution model.

Architecture

The LUTE architecture consists of four separate layers: - A database layer for storing parameter information and the results of analysis. - A Task layer which runs analysis code. - An execution layer which manages the differing environments used by components of the Task layer. - A workflow layer which launches series of managed Tasks (see below), in a specified order, to run various analysis routines in their respective environments.

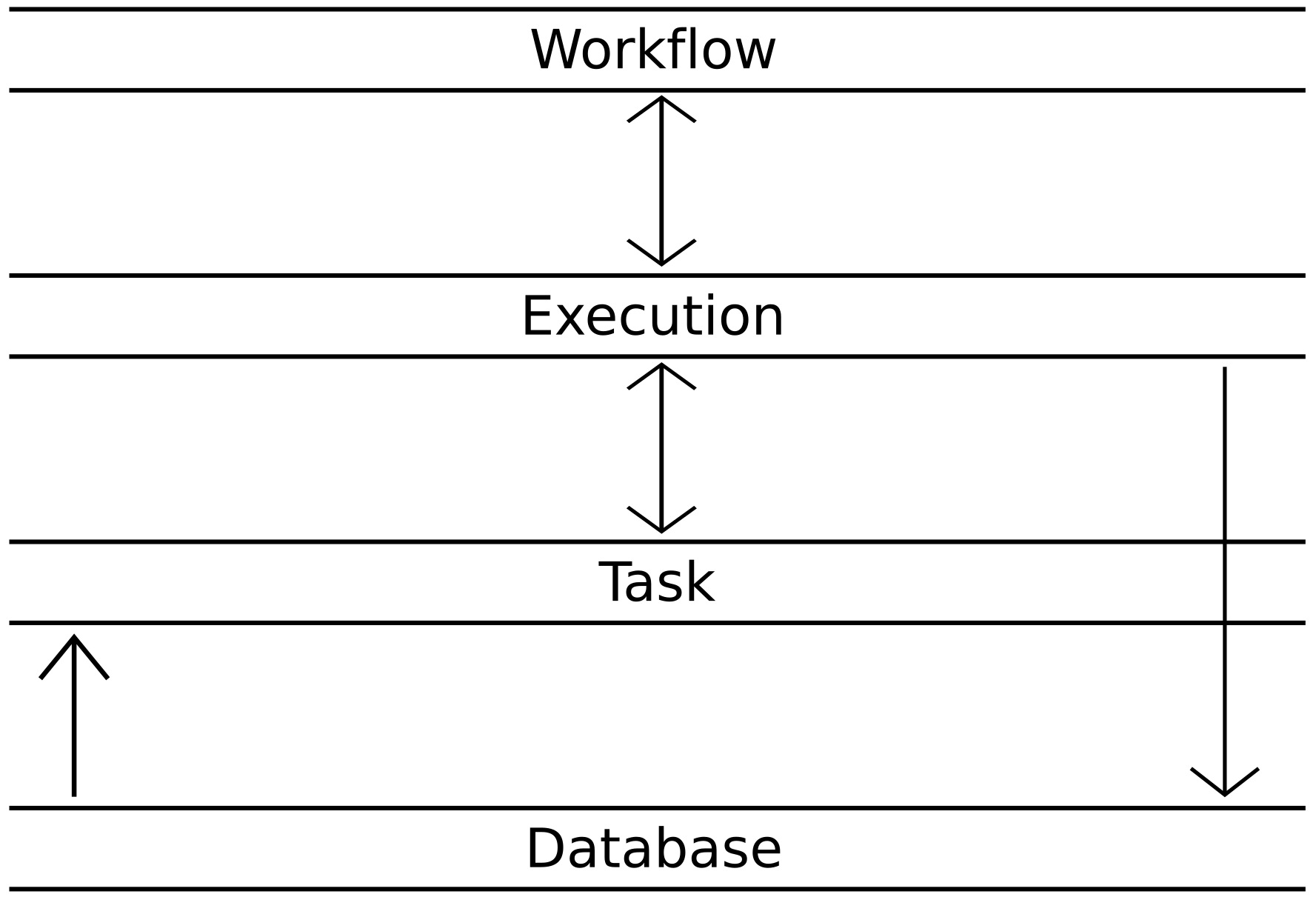

A rough schematic of the architecture and how the various layers communicate with each other is given by:

Glossary

Term	Meaning
Task	A unit of code “of interest” – e.g. may be an algorithm. Definition is flexible but typically will encompass processing until a natural stopping point.
Executor	A manager – executes or runs a Task in a specific environment and provides interactions with UI, etc.
Managed Task	Executor + Task to run. When code is executed in LUTE, it is done through managed Tasks. Task code on its own is not usually submitted.
Tasklet	A Python function attached to a managed Task.
DAG	Directed acyclic graph. A workflow, i.e., a number of managed Tasks and their dependencies.

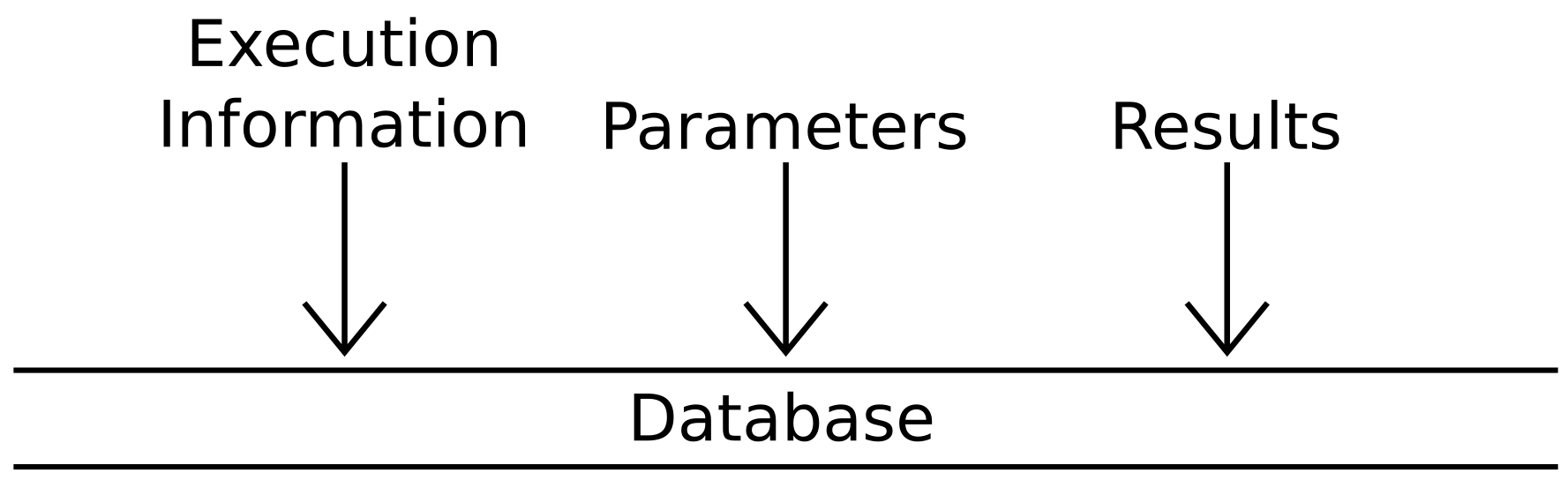

Database Layer

The database layer stores a complete set of information required for reproducing a processing step upon completion of that step, regardless of whether the analysis exited successfully.

The information stored includes:

• Parameter sets
• Results information - This may be a pointer to objects stored on a filesystem (i.e. a path), or the result itself the result can be simply represented, such as by a scalar value.
• Execution information - Information about communication protocols used between Task and Executor, as well as pertinent environment variables.

Importantly, all the data stored in the database is available to subsequent processing steps. In this way Tasks which are written to be runnable independently can be chained together into workflows which specify dependencies between them.

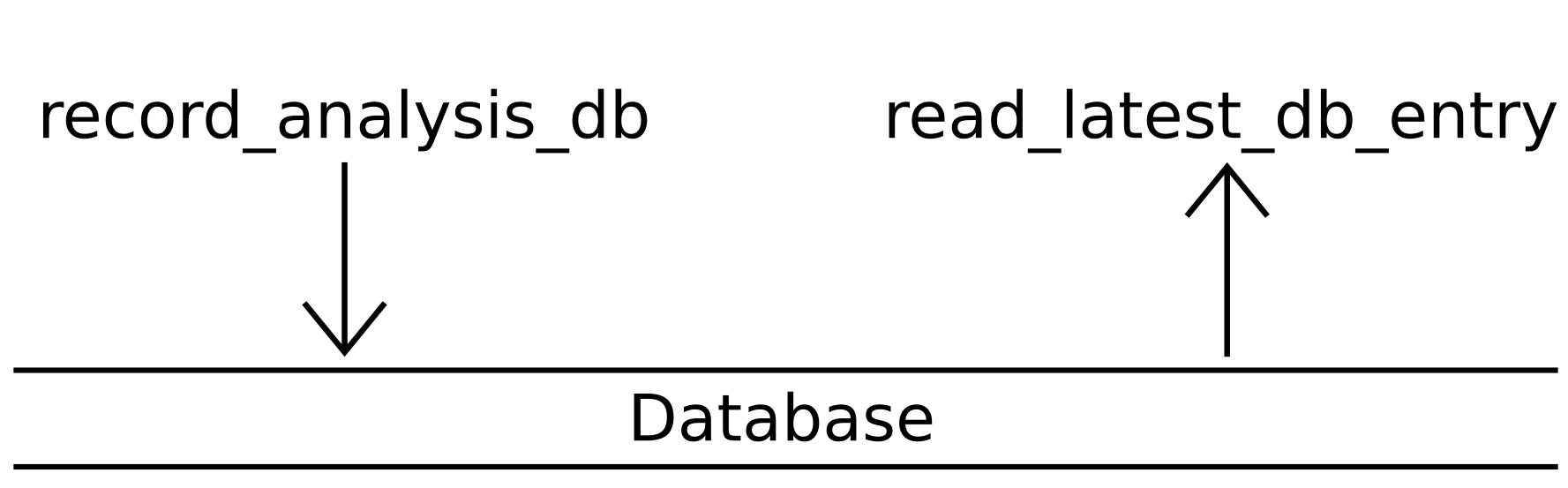

The database API is designed to be light-weight. The current implementation makes use of a sqlite database for portability, but this can be exchanged as needed.

In general, the API is designed with the idea the Task layer reads from the database, while the Execution layer writes.

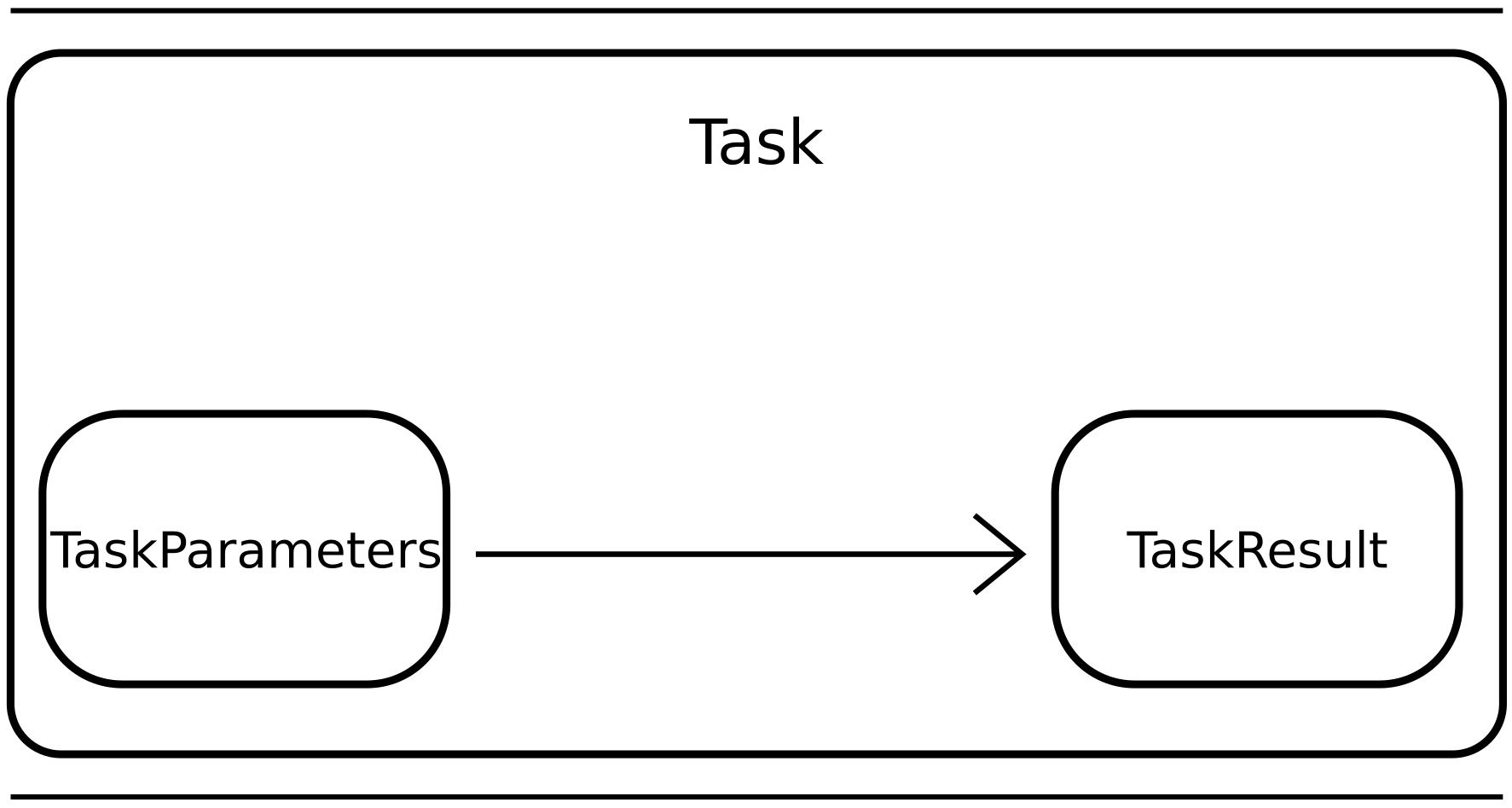

Task Layer

The Task layer consists of the actual analysis "code of interest". In paritcular, it is composed of three main objects:

• TaskParameters: A model comprising a set of type-validated parameters needed to run the Task.
• TaskResult: A description of the result of the analysis. Depending on the Task, the entire result may be contained within this object, although frequently a Task will, e.g., write out a file, the path to which is recorded as the result.
• Task: The main code to run. This object also contains the parameters and results.

A Task can be instantiated by passing in an instance of the TaskParameters object. The Task can then be run by invoking the run() method. A script is provided to do this: subprocess_task.py, although this script is not intended to be run directly, but rather submitted by an Executor (see below).

The subprocess_task.py script will go through the following steps:

1. subprocess_task.py does parameter validation. A configuration YAML is parsed for the specific Task we want to run, and the parameters are type-validated. If the validation fails, the script exits at this point without attempting to execute the analysis code.
2. Task is created and signals it is ready to start to the Executor. It passes along the validated parameter set along with this signal. After signalling, the process suspends itself with a SIGSTOP. This gives the Executor time to run any tasklets it may need to.
3. The process is resumed by the Executor when appropriate and the Task begins its actual analysis.
4. On completion the Task sends the result back to the Executor and exits.

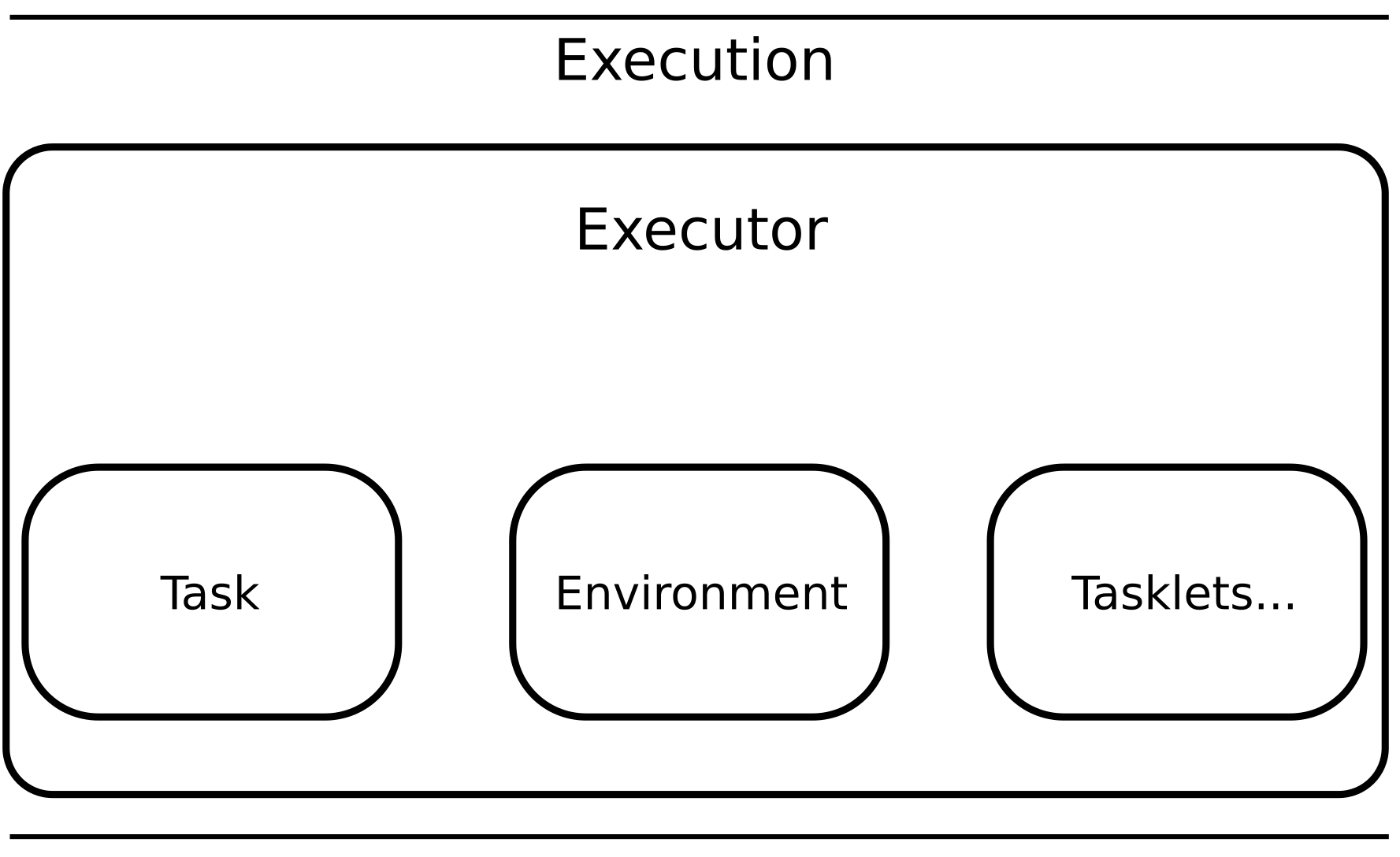

Execution Layer

The execution layer runs a Task in the appropriate environment. It consists of a number of principle objects:

• Executor: Orchestrates and manages Task running. The Executor also manages database writes and results presentation via preferred UI.
• Task: The code to execute
• Tasklets: Auxiliary functions. These are also run by the Executor, either before or after the main Task. They can take in as arguments the parameters which are passed to the main Task.

A managed Task, in LUTE terminology, is an instance of an Executor which in turns runs (i.e. manages) a Task (the actual analysis code to be run). In nearly all cases, except for perhaps when debugging, managed Tasks are the smallest executable units in LUTE. I.e. all analysis is submitted via managed Tasks, rather than by running the Task itself. A simple script, run_task.py, is provided to run one:

> python -B [-O] run_task.py -t <ManagedTaskName> -c </path/to/config/yaml>

This script takes the name of the managed Task and the path to the configuration YAML file. The managed Task is selected from one of those defined in the module managed_tasks.py, and then its execute_task() method is run.

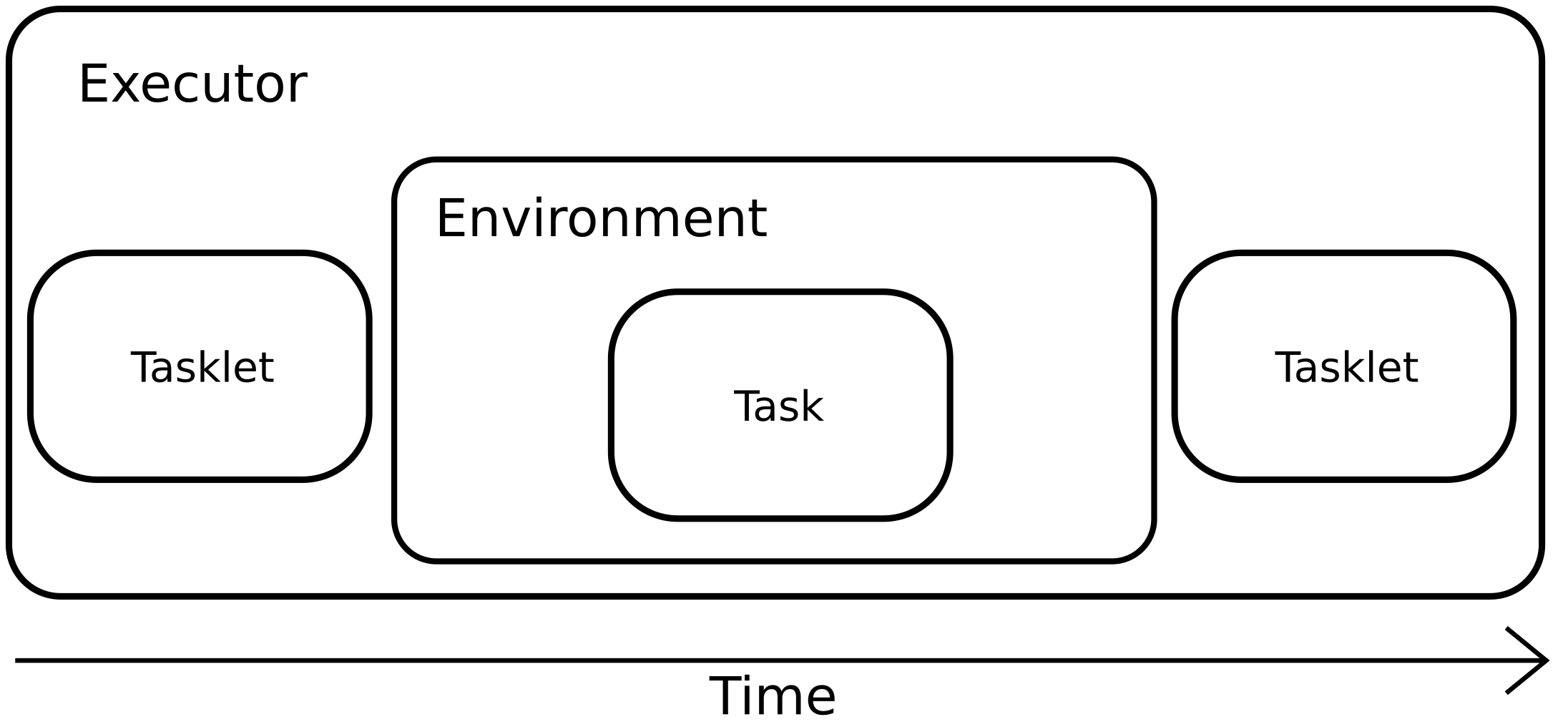

On calling execute_task(), the Executor goes through the following stages:

1. The Executor updates the environment that the Task will run in. How it does so is defined by using the update_environment() and shell_source() methods when it is created in the managed_tasks.py file. If these methods are not callled, then the Task will execute in the environment of the Executor.
2. The Executor then submits the subprocess_task.py as a subprocess. The script will run the specified Task and enter its task loop. The subprocess is launched with any environment modifications created in step 1.
3. The Task process will auto-suspend (see above). At this point the Executor will run any tasklets that need to be run before the main analysis. NOTE: Because the subprocess has already been launched at this point, the tasklet can NOT perform any environment modifications. On the other hand, however, the Executor will now have access to validated parameters for the Task, so these can be used as arguments to the tasklet. See here for more information on tasklets.
4. After running all tasklets, the Executor will then resume the Task process. It then continues processing signals, messages, etc., until the process completes, either successfully or due to an error.
5. When the subprocess exits, post-Task tasklets are run and any results are processed by the Executor. This may include activities such as preparing figures for the eLog.
6. Finally, the Executor records the information about the Task execution into the database.

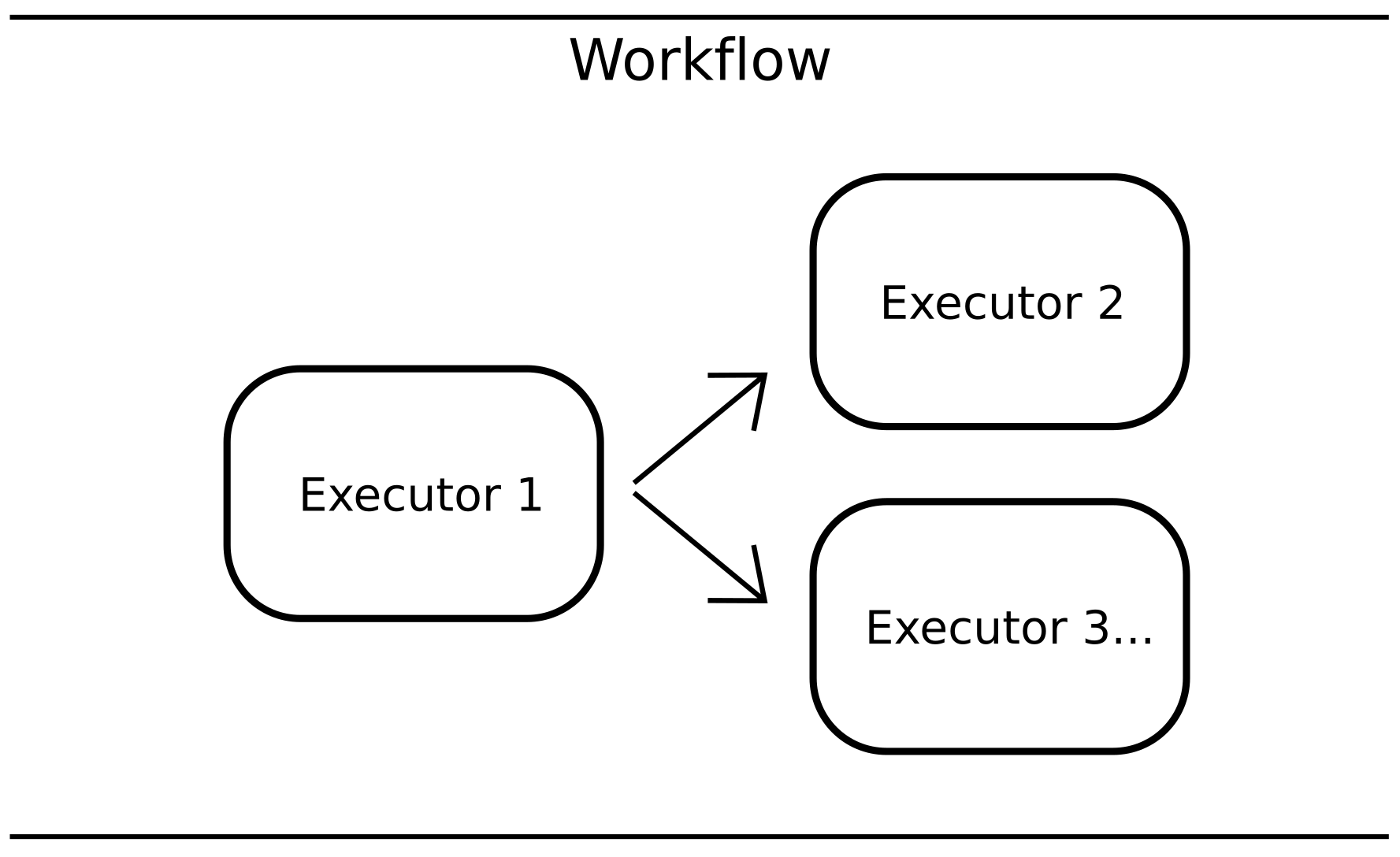

Workflow Layer

The workflow layer controls the order of submission of a number of managed Tasks. In the most generic form, it consists of:

• A series of managed Tasks (Executors)
• A description of the connectivity or dependencies between them. This may also include additional information such as early termination or special submission conditions, e.g. end a workflow early if Executor 2 reports success. Or, run Executor 3 only if Executor 1 reports failure.

Currently, the workflow layer is provided by either Airflow, or Prefect. The code running in the workflow layer is mostly independent of the rest of the code base. The workflow orchestration, in fact, runs simultaneously but on separate machines than the managed Tasks it is submitting.

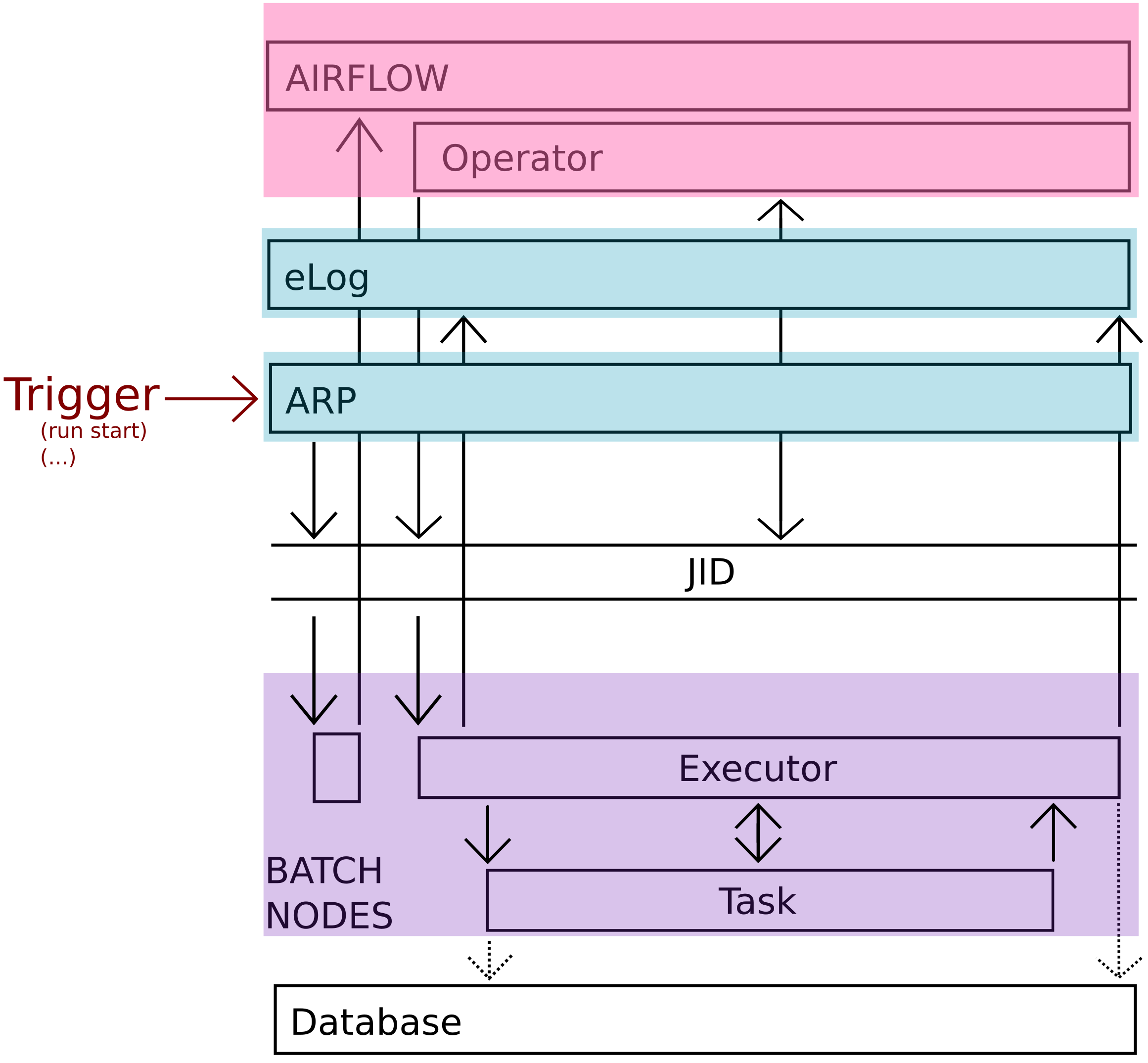

A schematic overview of the various components in an Airflow-based workflow running on S3DF is given below. A trigger, such as the start of a DAQ run, reaches the ARP (automatic run processor), which causes a small batch job to be started on S3DF. This batch job makes a request to the Airflow server to begin running a specific workflow. Airflow then submits Operators, which request managed Tasks be submitted as batch jobs on the S3DF. Once the batch job has started, the execution proceeds through the various layers described above.
